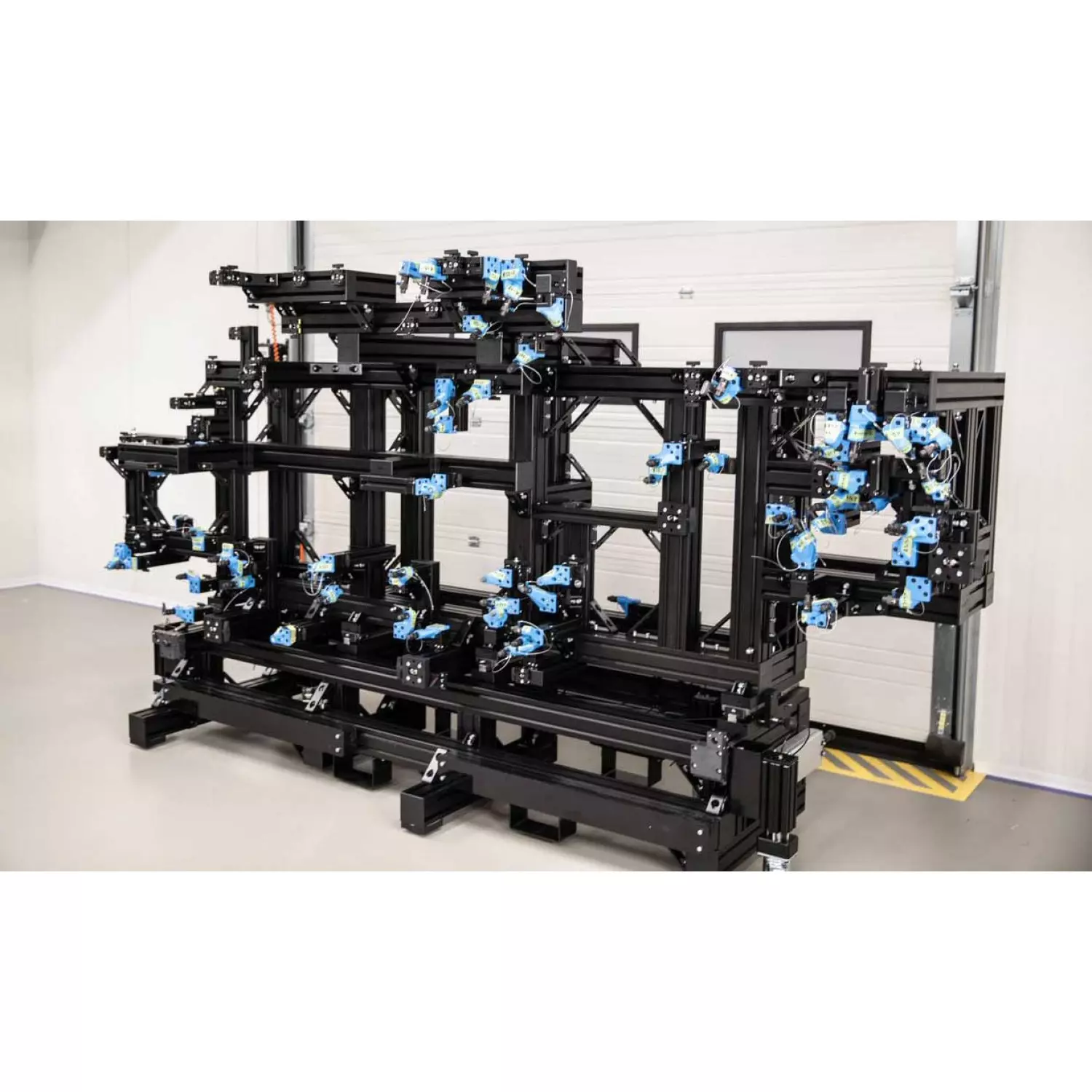

QC Fixtures

We are engaged in fabricating and distributing high-precision quality control fixtures primarily to inspect, measure, and verify the dimensional accuracy of components during production. Additionally, these fixtures are essential for maintaining quality standards and ensuring consistency across manufacturing batches. Our fixture is engineered using CAD/CAM technology and built from premium materials to guarantee precision, rigidity, and long-term performance.

Features :

• Accurate and repeatable measurement setup
• Rigid construction to avoid deflection or vibration
• Designed for quick inspection and easy handling
• Suitable for complex component geometries
• Compatible with CMM and manual inspection systems
• Built as per customer drawing and inspection requirements

Applications:

• Dimensional inspection of automotive, aerospace, and industrial parts
• In-process and final stage quality control
• Precision component validation and testing
• Calibration and verification of machined components

Materials Used: Aluminum, Mild Steel, Tool Steel, and Hardened Alloy Materials

Quality Assurance: All QC Fixtures undergo trial inspection and dimensional verification before delivery to ensure 100% accuracy

Customization: Fixtures are designed and developed as per customer drawings, CAD models, or sample parts

Delivery Time: Depend on design complexity and order quantity
